Drainage & utilities

Street Light Footings

Precast bases with cast-in bolt cages and cable ducts.

AED 360–680 per unit · indicative, ex-VAT and delivery

DM · DEWA 7–10 working days C40/50

Column bases with the bolt cage set to your pole PCD and the cable duct cast through, so a lighting run goes in without a wet pour on site.

Recent delivery

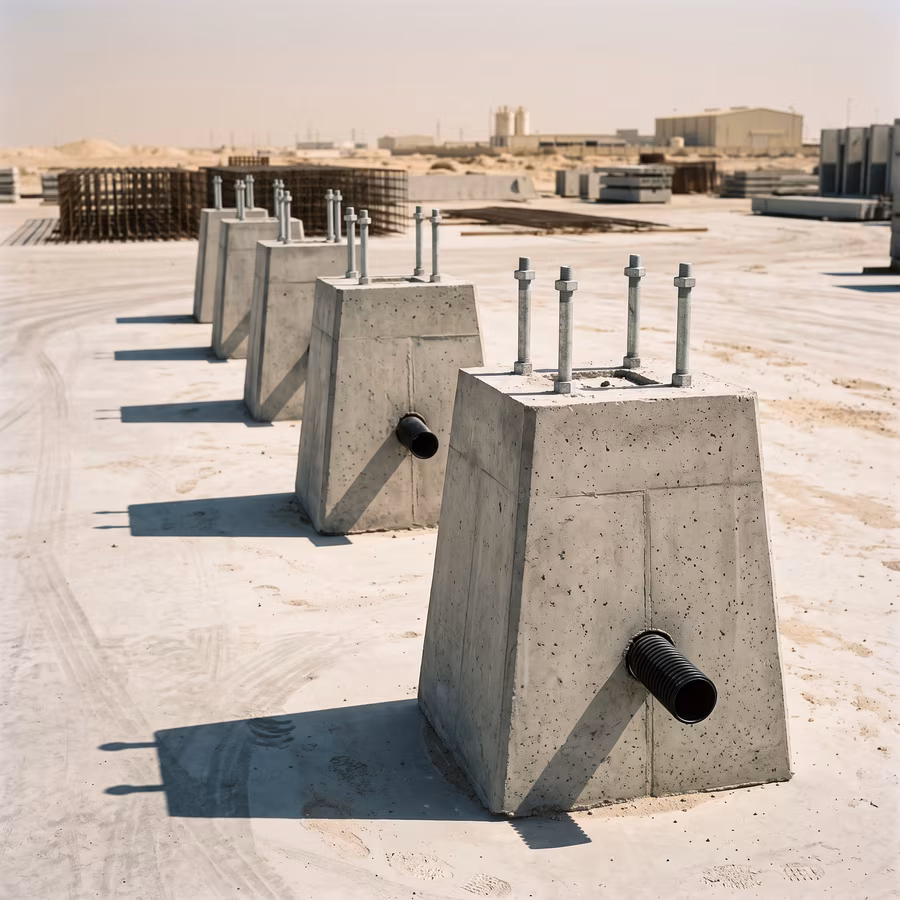

Precast concrete street light footings
3 Standard sizes
10 units Minimum order
7 Emirates delivered
Sizes & weights All dimensions in mm · weights nominal, ±5%

What we hold and what we cast

Unit Length Width Height Weight kg
Base 600 600 600 800 690
Base 800 800 800 1,000 1,480
Base 1,000 1,000 1,000 1,200 2,650

Outside this list, send the drawing. Non-standard sizes are cast to order, and above a modest quantity the mould cost is usually absorbed. How custom sizes work →

Variants Tell us the application and we will tell you which one

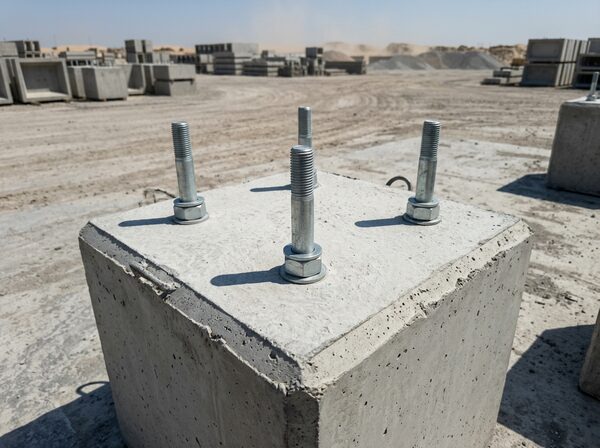

Light footings - Bolt cage variant
01 Bolt cage

Cast to your pole PCD and projection.

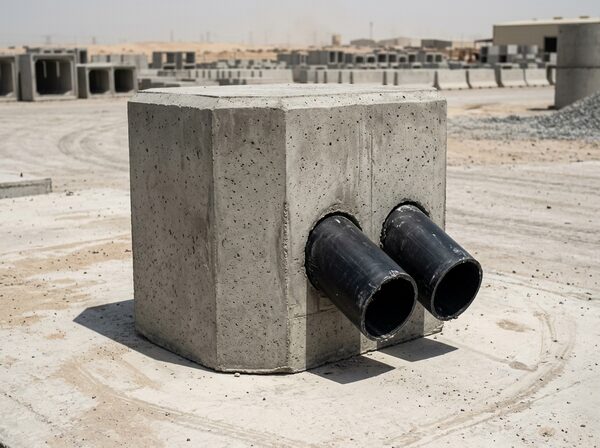

Light footings - Duct through variant
02 Duct through

Two 100 mm ducts cast in for the cable run.

Finishes available
Fair-face grey Bituminous external coat
General arrangement Drag to turn · dimensions are indicative
Standard unit Base 600
Length 600 mm
Width 600 mm
Height 800 mm
Weight 690 kg
Concrete C40/50
Delivery & handling 7–10 working days · delivered to site
01

Lifting

Two cast-in sockets, chain sling.

02

Bedding

Compacted granular base, checked for level and rotation.

Approvals & documentation

Paperwork with the pour, not after it

Every delivery note carries the batch reference, and the test certificates follow within the week, so you are not chasing them before a consultant inspection.

Dubai Municipality registered
DEWA registered for lighting bases
Approvals & test reports
Get a quote Your price and delivery date, by email the same day

Price for light footings

Give us the quantity and the emirate and you will have a delivered rate, usually the same working day. If you have a drawing, send it and skip the description.

Enquiring about Street Light Footings 7–10 working days · minimum 10 units · C40/50

We reply with a delivered price per unit and the next available slot. No account or registration needed.

Get a price
